Temperature Detection & Face-Recognitiion Terminal

Sale!

Temperature Detection & Face-Recognitiion Terminal

$ 550.00 $ 490.00

access-control with body temperature detection and facial recognition device

Description

Temperature Detection & Face-Recognitiion Terminal/Device with Access Control

10 languages: Italy, English, Spain, German, French, Portugal, Russian, Korean, Japanese, Traditional Chinese

Temperature-detection-and-face-recognitiion-terminal

Temperature-detection-and-face-recognitiion-terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Temperature Detection & Face-Recognitiion Terminal

Model: dFace-01

Face Recognition Body Temperature Detection

Main Specifications

  • Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human tem- perature acquisition at the same time, fast and higheffect
  • Temperature measurement range 30-41(℃) Accuracy ± 0.3(℃)
  • Automatically identify unmasked personnel and provide real-timewarning
  • Support temperature data SDK and HTTP protocoldocking
  • Automatically register and record information, avoid manual operation, improve efficiency and reduce missinginformation
  • Support binocular livedetection
  • Unique face recognition algorithm to accurately recognize faces, face recognition time<500ms
  • Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic≥ 80dB
  • Adopt Linux operating system for better systemstability
  • Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows /Linux
  • 7-inch IPS HDdisplay
  • IP34 rated dust and waterresistant

– MTBF> 50000 H

  • Support 22400 face comparison library and 100,000 face recognitionrecords
  • Support one Wiegand input or Wiegandoutput
  • Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for variousfields

Scene demand

  • Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
  • -15 ℃ to + 60 ℃ environment long-term stablework
Processor Hi3516DV300 Temperature Range 30-45(℃)
Operating System Linux operating system Temperature Accuracy ±0.3(℃)
Storage 16G EMMC Temperature Measurement Distance ≤0.5m
Imaging Device 1/2.7″ CMOS Response <300ms
Lens 6mm Equipment Size 154 (W) * 89 (D) * 355.4(H) mm
Power Supply DC 12V/3A Equipment Weight 2.1 kg
Equipment Power 20W(MAX) Column Diamete 33mm
Working Temperature -15℃ – +60℃
Technical parameter
Camera Binocular camera, support live detection
effective pixels 2Mega pixel,1920*1080
Minimum Illumination Color 0.01Lux @ F1.2 (ICR) black and white 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
Wide Dynamic Range ≥80db
Face Recognition Height 1.2-2.2m, angle adjustable
Face Recognition Distance 0.5-3m
Viewing Angle Vertical ±30 degrees
Recognition Time < 500ms
Function Support 22,400 face comparison library an 100,000 face recognition records

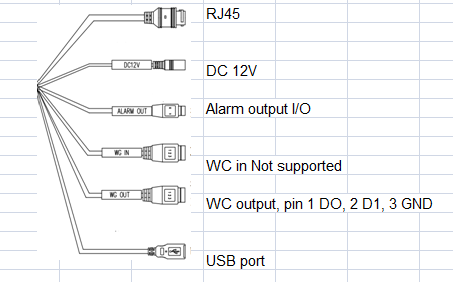

Interface
Network Interface RJ45 10M/100M Ethernet
Wiegand Interface Support input/output 26 and 34
Alarm Output 1channel relay output
USB Interface 1USB port (Can be connected to ID identifier)





Precautions:

  • The temperature measuring device should be used in a room with a room temperature between 10 ℃ -40 ℃. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3meters;
  • Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;

The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.



Precautions:

  • The temperature measuring device should be used in a room with a room temperature between 10 ℃ -40 ℃. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3meters;
  • Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;
  • The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this
