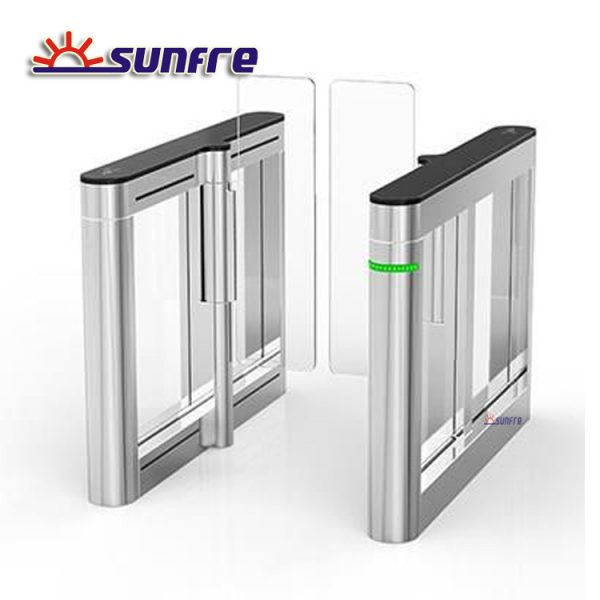

Speed Swing Gate
1 General Description
Speedstile Speedstile Swing Gate series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
The outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
2 Main Functions and Features of the System
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcely passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
A)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B)To set up operation mode for passage entry and exit.
C)To read card with multiple times, the special function meeting the application requirements of a particular site.
D)To set up the card reading with or without memory.
E)To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.
13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
15) Strong system expending capability, available to add new product at any time
16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
17) Resetting automatically. after reading card ,if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.
3 Main Technical Specifications
Material: SS304,thickness is no less than 1.5mm
Manufacturing Technique: CNC laser cutting
Barrier Material: Acrylic glass, SS304 and so on
Gate Opening and Closing time: ≤ 0.4S
Passing Speed: Normally open-50persons/min; Normally closed-50persons/min
Communication Connection: RS485 Communication
Motor: DC Brushless Motor, 140W/24V
Communication Distance: ≤1200M
Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Infrared Sensors: 9 or 10 Pairs
Relative Humidity: <95%, No Densation
Operating Temperature: -15°C-60°C
Working environment: indoor and outdoor(added the rainshed)
Colour: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
