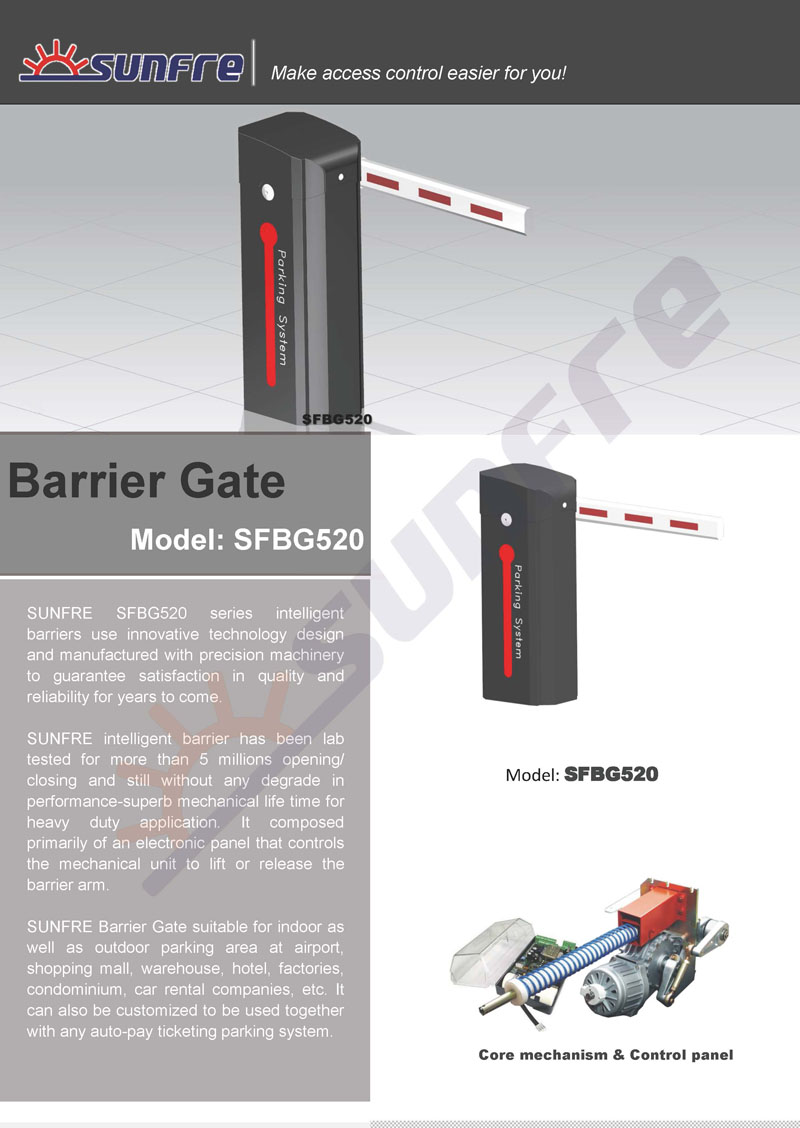

SFBG520 Barrier Gate

SFBG520 Barrier Gate

SFBG520 Barrier Gate


Brochure download:

SUNFRE SFBG102 Barrier Gate Brochure V2019

Keywords: Barrier Gate,Intelligent Barrier Gate,Automatic Barrier Gate,Traffic Barrier Gate,Boom Barrier Gate,Road Barrier Gate,Parking Barrier Gate,Car Barrier Gate,Boom Gate,Boom Barrier Gate,Security Barrier Gate,Safty Barrier Gate,Gate Bridge Barrier,Barrier Arm, Boom Arm,Vehicle Barrier Gate,Vehicle Parking Barrier gate,Vehiclie Boom Gate,Industrial Barrier Gate,Remote Control Barrier Gate,Electric Barrier Gate,Folding Barrier Gate,90 Degree Folding Barrier Gate,180 Dgree Folding Barrier Gate,Fence Barrier Gate,2 Fence Barrier Gate,3 Fence Barrier Gate,Gate Barrier,Arm Gate,Arm Barrier

Basic Features:

1. By-security. The barrier gate will automatically go back when meet obstacles during closing.

2. AC motor is more powerful and no maintenance.

3. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate

4. closing time is also arranged from 1 second to 6 seconds.

5. The barrier gate can be both right-installed and left-installed.

6. All the operation process is soft without any noise and shaking.

7. Infrared photocell interface, Loop detector interface and IC system

8. interface are reserved for the other functions.

9. Green light and red light are used inside for indication the position of the beam.

Advanced Features:

1. Clutch key can be used to open the clutch when power off.

2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.

4. Thimble type motor worm design for preventing plugging up in using.

5. Balance spring no noise and easy adjusting design

6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.

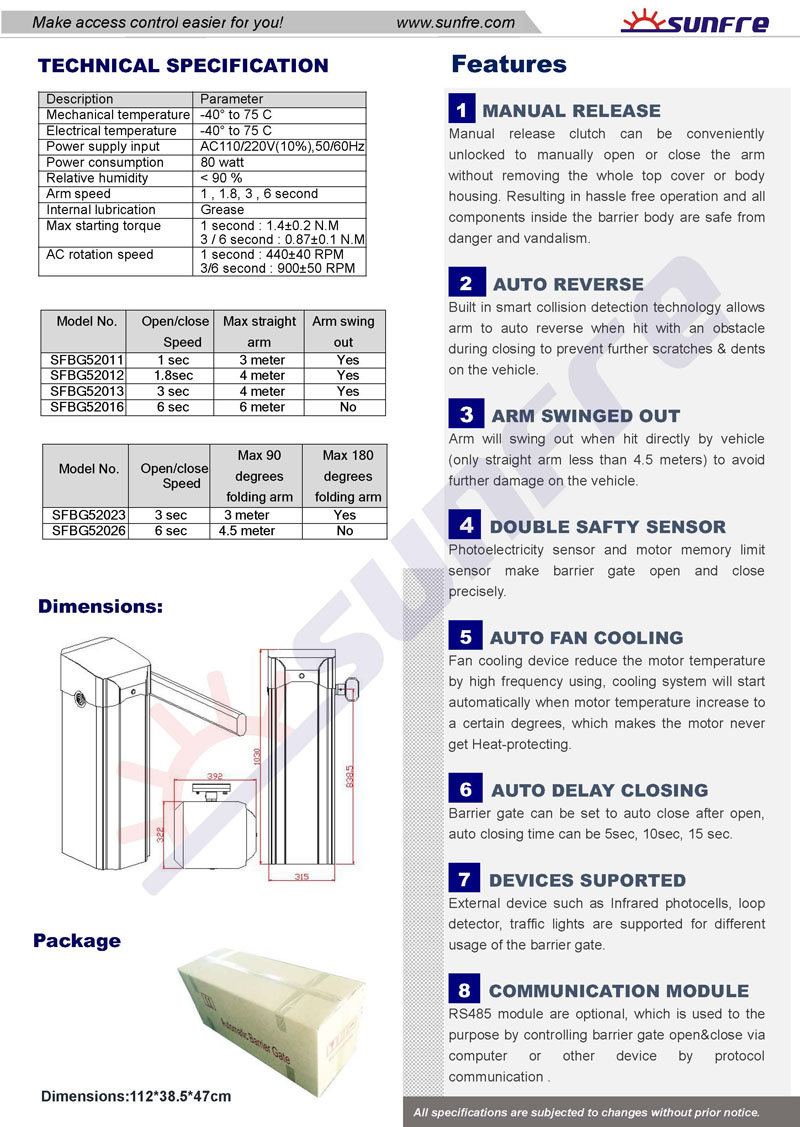

Technical data:

1) Beam length: <=6m

2) Opening (Closing) time: 1s, 3s, 6s

3) Center height: 0.83m

4) Machine core working temperature: -40 degrees to +75 degrees

5) Electric working temperature: -20 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Net weight: 70KGS


Optional Color

Orange, Red, Blue, Yellow, White



Parking lots, toll gate, goods yard, railway crossing,

commercial premise, apartment block access and so on.

Advanced Features:

1. Clutch key can be used to open the clutch when power off.

2. Fan cooling machine reduce the motor temperature by high frequency using,

never get Heat-protecting. Unique temperature calefaction design for low temperature using,

prevent freezing in cold weather.

3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion

to prolong the barrier gate working life.

4. Thimble type motor worm design for preventing plugging up in using.

5. Balance spring no noise and easy adjusting design

6. Double limit methods (electronic limit and motor sensor memory limit)

for beam rises and falls.

Basic Features:

l By-security. The barrier will automatically go back when meet obstacles during closing.

l AC motor is more powerful and no maintenance.

l Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged

from 1 second to 6 seconds.

l The barrier can be both right-installed and left-installed. (please refer to page 9)

l All the operation process is soft without any noise and shaking.

l Infrared photocell interface, Loop detector interface and IC system interface are reserved

for the other functions.

l Green light and red light are used inside for indication the position of the beam.


Motor AC
Working temperature -40°C to +75°C
Working cycle 50%
Power supply 220V±10% / 110V±10%
Rated power 120W
Opening time 1s, 3s, and 6s
Net weight 70KGS

Optional Barrier housing

(Sturdy and strong housing 2.5 mm thickness mild steel, Housing is polished, phosphorized

and further finished with plastic coating to ensure long lasting bright colors)


Optional Color

We have the following 5 kinds of colors, you can choose by your request.

Tell me the code of the color on the color board (Orange EDH5424, Red EDH6547,

Blue EDH4723, Yellow EDH5459, White EDH1535).

And you can also adopt our original design.


Barrier Gate Packing
